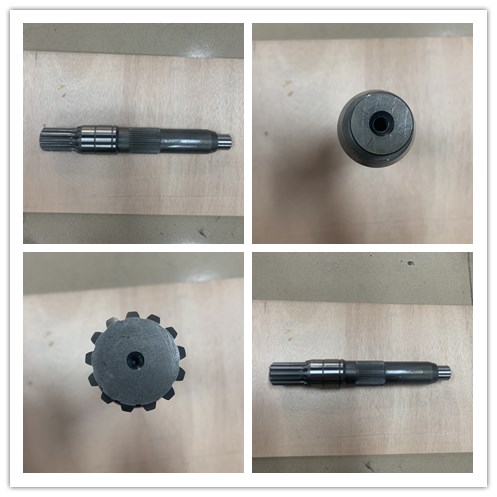

167-3855 Excavator Planetary Gear Parts E330D E336D Swing Device Motor shaft
Product description
| Appliion | Crawler excavator |
| Part name | Swing device motor shaft |
| Part number | 167-3855 |
| Machine model | E330D E336D |
| Quality | Aftermarket |
| Condition | 100% new |
| MOQ | 1 PCS |
| Warranty | 3 months |
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
| 1 | 1T0936 | PLUG (PIPE) (1/16-27 THD) | 1 | |
| 2 | 4B4158 | SCREW (IDENTIFIION PLATE) MOUNTING | 4 | |
| 3 | 6V3382 | SEAL-LIP TYPE | 1 | |
| 4 | 8J2559 | PLATE-CAUTION (OIL FILL) | 1 | |
| 5 | 0874786 | ADAPTER | 1 | |
| 6 | 0961519 | SHEET | 1 | |
| 7 | 0965915 | RETAINER | 2 | |
| 8 | 1086503 | PISTON AS | 9 | |
| 9 | 1184057 | SPRING | 9 | |
| 10 | 1241541 | PIN | 2 | |
| 11 | 1241561 | SPRING (BRAKE) | 20 | |
| 12 | 1373708 | RETAINER | 1 | |
| 13 | 1673855 | SHAFT | 1 | |
| 14 | 1673857 | KEY | 1 | |
| 15 | 1673858 | KEY | 1 | |
| 16 | 1673859 | PLATE-CAM | 1 | |
| 17 | 1673862 | PLATE-RETAINER | 1 | |
| 18 | 1673863 | BALL | 1 | |
| 19 | 1673865 | PLATE-SEPARATOR | 5 | |
| 20 | 1673866 | PLATE-FRICTION | 4 | |
| 21 | 1673867 | PLATE-PORT | 1 | |
| 22 | 1673868 | PISTON-BRAKE | 1 | |
| 23 | 1673872 | SPOOL | 1 | |
| 24 | 1701612 | SEAL | 2 | |
| 25 | 1701626 | RING-BACKUP | 1 | |
| 26 | 1701627 | RING-BACKUP | 1 | |
| 27 | 1734063 | BARREL AS-MOTOR | 1 | |
| 28 | 1734066 | SPACER (63.05X79.8X7-MM THK) | 1 | |
| 29 | 1757436 | VALVE | 1 | |
| 30 | 1757887 | DOWEL | 2 | |
| 31 | 1806769 | BEARING AS | 1 | |
| 32 | 1806770 | BEARING AS | 1 | |
| 33 | 1865175 | PLUG | 1 | |
| 34 | 1893189 | RING-SEAL | 1 | |
| 35 | 1937900 | HEAD AS | 1 | |
| 36 | 1937901 | BODY AS | 1 | |
| 37 | 1964987 | PISTON-ACTUATOR | 1 | |
| 38 | 0951572 | SEAL - O-RING (4.80 MM ID) | 2 | |
| 39 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 1 | |
| 40 | 0951596 | SEAL-O-RING (ID=28.70mm) | 1 | |
| 41 | 0951700 | SEAL - O-RING (34.40 MM ID) | 2 | |
| 42 | 0957380 | SPRING | 1 | |
| 43 | 0963978 | SPRING | 1 | |
| 44 | 0965919 | RING (5.00MM ID) | 2 | |
| 45 | 0997030 | RING-BACKUP | 1 | |
| 46 | 1701616 | SEAL | 1 | |
| 47 | 2D6642 | BALL 6.35 mm(.25 in.)diameter | 2 | |
| 48 | 2M9780 | SEAL--TO CONNECTOR PUMP OUTLET | 1 | |
| 49 | 2R1236 | RING-RETAINING | 1 | |
| 50 | 3F1547 | SEAL 7.484 in. (190.10 mm) I.D. | 1 | |
| 51 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 4 | |
| 52 | 4K4284 | RING-RETAINING | 1 | |
| 53 | 6V5192 | BOLT-SOCKET HEAD (M8X1.25X30-MM) | 4 | |
| 54 | 7Y5219 | SEAL-O-RING (ID=12.37mm) | 2 | |
| 55 | 8T2393 | BOLT-SOCKET HD (SOCKET HEAD) (M16X2X60MM) | 8 | |
| 56 | 9S8005 | PLUG-O-RING (STRAIGHT THREAD O-RING) | 4 | |
| 57 | 0960008 | BOLT-SOCKET HEAD (M16X2X140-MM) | 4 | |
| | | | | |
| | | AVAILABLE REPAIR KIT(S): | | |
| | 1843061 | KIT-SEAL (TRAVEL MOTOR) | 1 | |
| | | KIT MARKED J SERVICES PARTS MARKED J | | |
| | | METRIC PART | | |
About our company
Guangzhou Belparts Engineering Machinery Limited, is a foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
Trade capacity

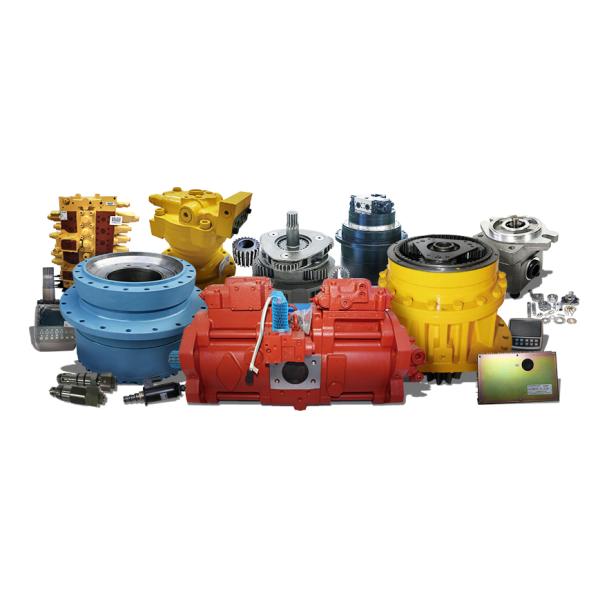

About our products
